TANDEM-AXLE SPREADER MS 240
The tandem-axle spreader MS 240 has a permissible total weight of 24,000 kg, and its body and box width are identical in design as the single-axle spreader MS 140. Despite its immense size, the MS 240 with its large and wide wheels is highly manoeuvrable even on muddy ground. The low loading height means that it can be used easily even with small tractors.
| Total weight | 24,000 kg |
| Support load | 4,000 kg |
| Frame dimensions | 8,700 mm x 1,450 mm |
| Box dimensions | 7,400 mm x 1,450 mm |
| Height of side walls | 1.400 mm |
| Usable load capacity, approx. | 20 cbm |
| Loading height in basic version, approx. | 2.650 mm |
| Gauge width | 2.400 mm |
| Axle | 10-hole wheel connection |
| Tires | 1. Axle 650/65 R 38 2. Axle 580/70 R 38 |

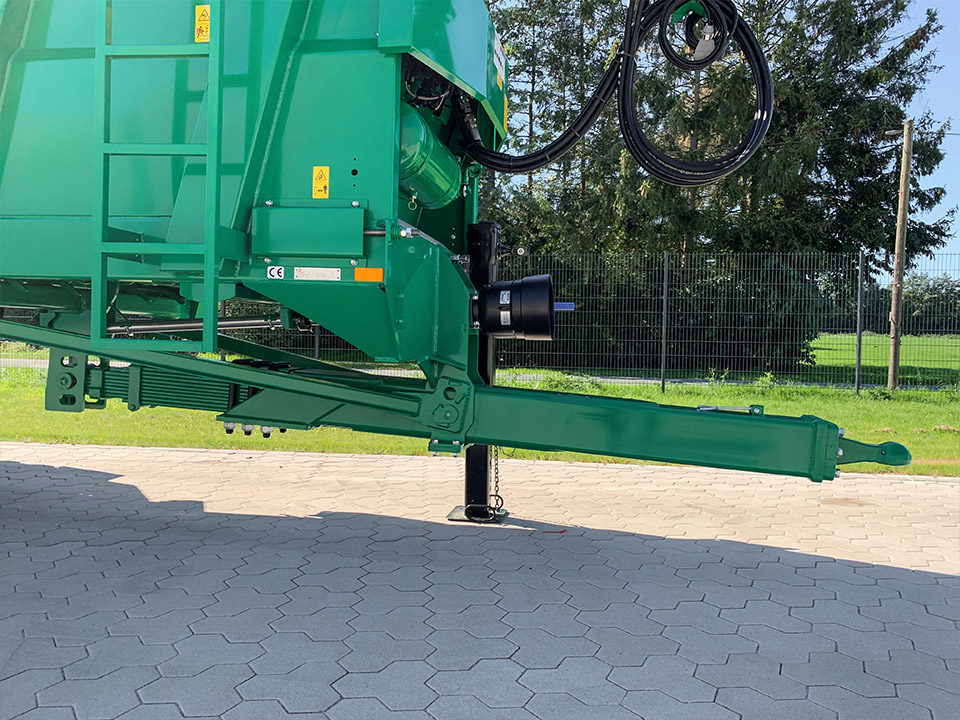

- Hitch drawbar with spring suspension, swivel ring Ø 50 mm
- 10-t jack stand with 2-step gearbox, support foot can be adjusted separately
- Hydraulic suspension with BPW axles, trailed steering axle and lifting axle for traction support
- LED lights pursuant to German road traffic regulations (StVZO), light system 12 V, connecting cable, socket
- 4-wheel air brake with ALB controller, tristop cylinder as a parking brake
- Steel side walls 3 mm thick, 1,400 mm high, slanted at the top, smooth on the inside, welded on the outside,
- Grille and rubber sealing in the front wall
- Hydraulically-actuated, swivel-mounted rear hood
- Two conveyors with four round steel chains 14 x 50 mm (breaking load 4 x 24 t)
- Steel floor
- Gearbox with hydr. motor for forward and reverse of scraper floor
- Two beater rotors with an outer diameter of 650 mm. Spreader aggregate passage 1,700 mm
- 1 ¼ “ roller chain to drive the lower beater rollers
- 2-disc spreader with a disc diameter 1,000 mm / 4 distribution vanes on each
- Disc gearing with shaft Ø 60 mm / overload protection / freewheel drive mechanism, spreading unit protected by 8 mm thick HARDOX wear plates
- Walterscheid drive shaft PWE 580 with cam clutch and freewheel drive mechanism to protect the powertrain and beater rollers
- Overload clutch to protect the disc spreading aggregate
- Freewheeling between the spreader plate transmissions
- If equipped with electrical control system: Speed monitoring of the beater rotors. The bottom chain is stopped when beater rotor speed is < 140 rpm.
| Article no. | Article |
|---|---|
| E22017 | Slurry gate, opening 1,700 mm, slurry gate display on the front wall |
| E22090 | Steel body 350 mm, screwed on, 25 cbm |
| E22031 | Spreading cover, hydraulic, on left side |
| E22035 | Spreading cover, hydraulic, on right side |
| E22060 | Duplex chain to drove the lower beater rollers |
| E22070 | LED work lights, per unit |
| E22040 | Protective bar for side walls |
| E22050 | Protection plate for rear hood |
| E24200 | Lighting package: Position lights red / white, side lights yellow, beacon light yellow |
| Article no. | Article |
|---|---|
| E24010 | Electrical operation of endless floor with safety shutdown |
| E24020 | Electrical operation of endless floor, slurry gate and rear hood with safety shutdown |
| E24040 | Additional function for 24020: Electrical operation for spreading cover |
| E24100 | Operating hour counter for electrical operation |
| E24110 | Load counter |
| E24105 | Job calculator with cable harness (prerequisite item 24020) |
| E24106 | ISO BUS terminal |
| E24120 | Dosage valve with a sensor for digital opening display |
| E24400 | Automatic lubrication of the roller chain on the spreading aggregate |
| E24410 | Central nipple lubrication system for endless floor and spreading aggregate (17 / 18 lubrication points) |
| E24500 | Electrical central lubrication for all lubrication points on the chassis and body, without rotating joints, automat. lubrication of the roller chain on the spreading aggregate |
