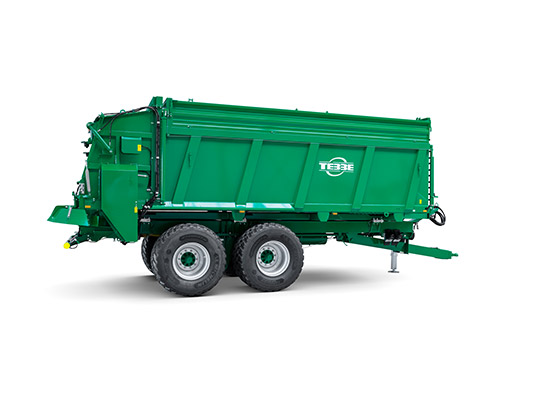

TANDEM-AXLE SPREADER HS 220
With a useful loading volume of 20 cbm, the tandem-axle spreader HS 220 leaves nothing to be desired as far as capacity is concerned. In combination with its incredible efficiency, it allows larger quantities of organic spreading material to be spread in a very short time - for continuous high daily rates.

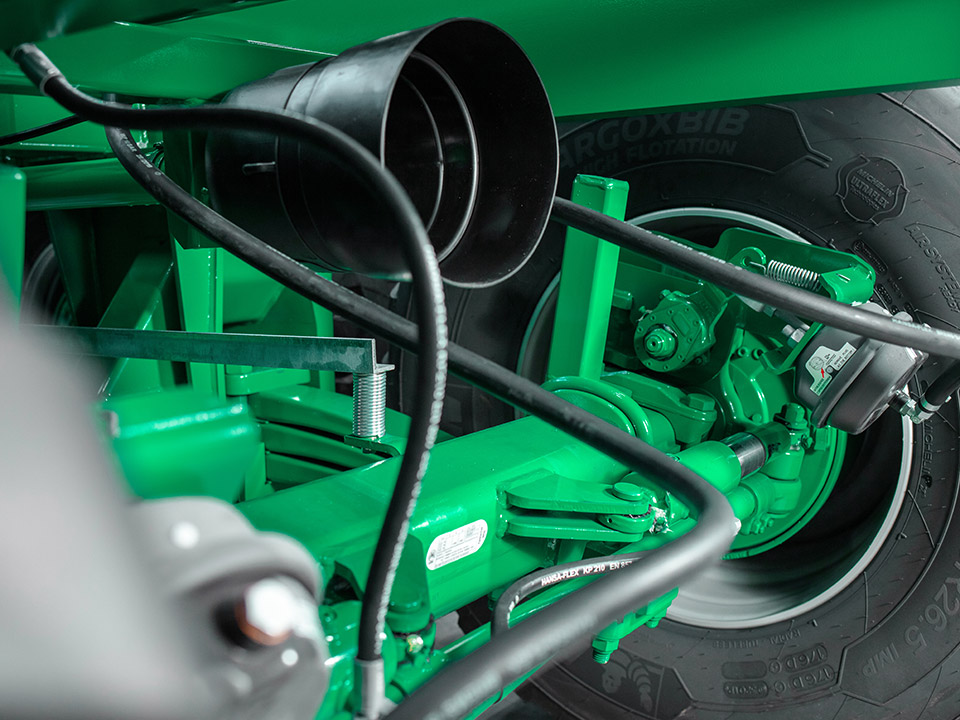

- Tandem chassis with BPW bogie aggregate, BPW trailing self-steering axle
- Hitch drawbar with spring suspension, swivel ring Ø 50 mm
- 10-t jack stand with 2-step gearbox, support foot can be adjusted separately
- LED lights pursuant to German road traffic regulations (StVZO), light system 12 V, connecting cable, socket
- 4-wheel air brake with ALB controller, spindle brake as a parking brake
- Steel side walls 3 mm thick, 1,400 mm high, smooth on the inside, welded on the outside,
- Grille and rubber sealing in the front wall
- Hydraulically-actuated, swivel-mounted rear hood
- Two conveyors with four round steel chains 14 x 50 mm (breaking load 4 x 24 t)
- Steel floor
- Gearbox with hydr. motor for forward and reverse of scraper floor
- Slurry gate, opening 1,500 mm, slurry gate display on the front wall
- Two beater rotors with an outer diameter of 650 mm. Spreader aggregate passage 1,500 mm

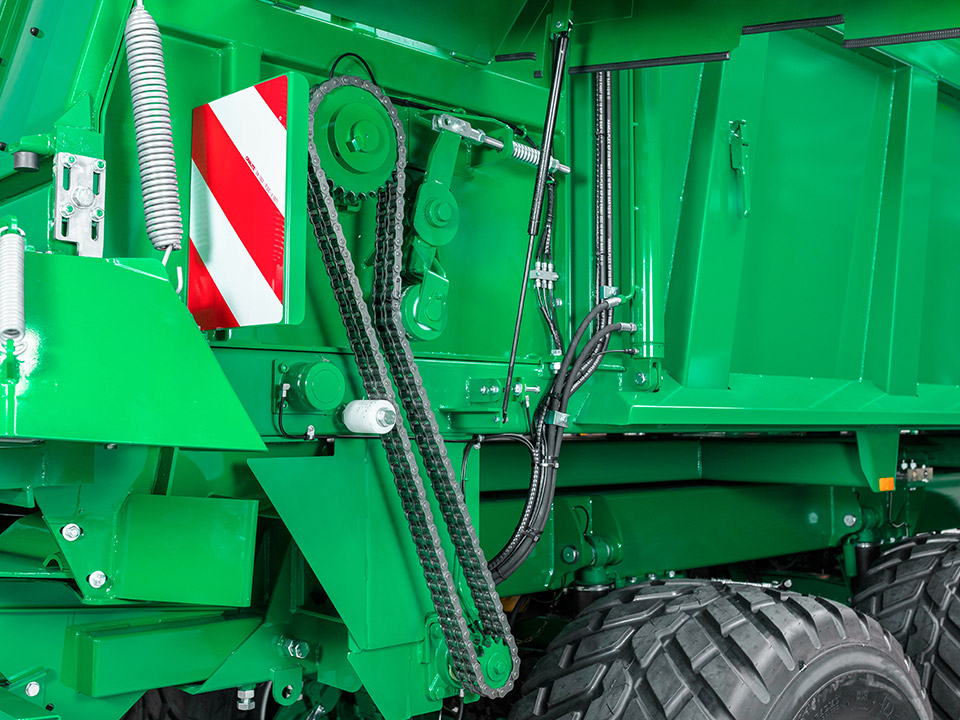

- Duplex chain to drove the lower beater rollers
- 2-disc spreader with a disc diameter 1,000 mm / 4 distribution vanes on each
- Disc gearing with shaft Ø 60 mm / overload protection / freewheel drive mechanism, spreading unit protected by 8 mm thick HARDOX wear plates
- Walterscheid drive shaft PWE 580 with cam clutch and freewheel drive mechanism to protect the powertrain and beater rollers
- Overload clutch to protect the disc spreading aggregate
- Freewheeling between the spreader plate transmissions
- If equipped with electrical control system: Speed monitoring of the beater rotors. The bottom chain is stopped when beater rotor speed is < 140 rpm.
| Article no. | Article |
|---|---|
| E20015 | Hydraulic support foot |
| E20019 | Drawbar with ball coupling system D80 |
| E20040 | Forced steering axle with hydraulic steering |
| E20055 | Hydraulic suspension with BPW axles, and levelling valve
|
| E54510 | 4 x parking supports |
| E20065 | BPW axles with borehole for tire pressure regulation system |
| E20072 | Electrical weighing device with 6 cells |
| E21021 | Tire 650 / 55 R 26.5 Alliance 380 |
| E21022 | Tire 710 / 50 R 26.5 Nokian Country King |
| E21023 | Tire 710 / 50 R 26.5 Michelin CargoXBib HF |
| E21024 | Tire 750 / 45 R 26.5 Alliance 380 |
| If equipped with 20055 hydraulic suspension, the following are also possible: | |
| E21026 | Tire 800 / 45 R 26.5 Michelin CargoXBib (outer width 3,050 mm) |
| E21027 | Tire 710 / 50 R 30.5 Michelin CargoXBib |
| E21028 | Tire 800 / 45 R 30.5 Michelin CargoXBib |
| Article no. | Article |
|---|---|
| E22145 | Steel body 500 mm, load volume 25.2 cbm |
| E22027 | Endless floor with 4 die-forged flat link chain type 100 |
| E22026 | Endless floor with 4 die-forged flat link chain type 125 |
| E22300 | Spreader aggregate with 3 beater rollers, opening 1,900 mm, beater rollers with an outer diameter of 550 mm, gate opening 1.900 mm |
| E22032 | Rubber seal on the slurry gate |
| E22031 | Spreading cover, hydraulic, on left side |
| E22035 | Spreading cover, hydraulic, on right side |
| E22070 | LED work lights, per unit |
| E22040 | Protective bar for side walls |
| E22050 | Protection plate for rear hood |
| E24200 | Lighting package: Position lights red / white, side lights yellow, beacon light yellow |
| E24250 | Double lighting / in LED on the spreader aggregate |
| Article no. | Article |
|---|---|
| E24040 | Electrical operation for spreading cover |
| E24100 | Operating hour counter for electrical operation |
| E24110 | Load counter |
| E24105 | Job calculator with cable harness |
| E24106 | ISO BUS terminal |
| E24108 | CAN BUS module (if equipped with items 24105 + 20072) |
| E24120 | Dosage valve with a sensor for digital opening display |
| E24400 | Automatic lubrication of the roller chain on the spreading aggregate |
| E24410 | Central nipple lubrication system for endless floor and spreading aggregate (17 / 18 lubrication points) |
| E24500 | Electrical central lubrication for all lubrication points on the chassis and body, without rotating joints, automat. lubrication of the roller chain on the spreading aggregate |
