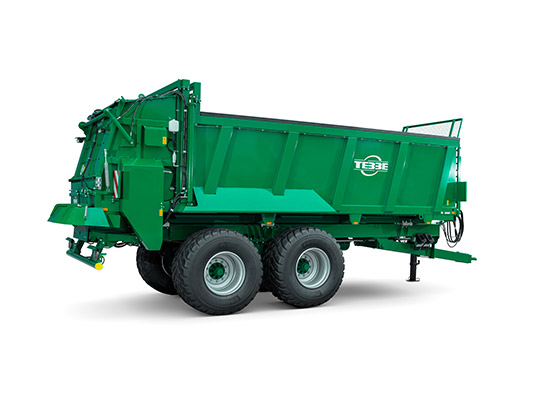

TANDEM-AXLE SPREADER DS 180
The tandem-axle spreader DS 180 has a useful load of 12,000 kg, making it the largest work unit in the DS series. This means that it offers enough resources and performance even for more comprehensive agricultural tasks. It comes with the durable spreader table that is typical for the series, very strong tearing beaters and a reinforced 1” rolling chain.
- Tandem-axle aggregate with parabolic suspension and BPW axle
- Hitch drawbar with ring Ø 40 mm
- 10-t jack stand with 2-step gearbox, support foot can be adjusted separately
- LED lights pursuant to German road traffic regulations (StVZO), light system 12 V, connecting cable, socket
- 4-wheel air brake with ALB controller, spindle brake as a parking brake
- Steel side walls 3 mm thick, 1,250 mm high, smooth on the inside, welded on the outside,
- Grille and rubber sealing in the front wall
- Hydraulically-actuated, swivel-mounted rear hood
- Two conveyors with four round steel chains 14 x 50 mm (breaking load 4 x 24 t)
- Steel floor
- Gearbox with hydr. motor for forward and reverse of scraper floor
- Slurry gate, opening 1,300 mm, slurry gate display on the front wall

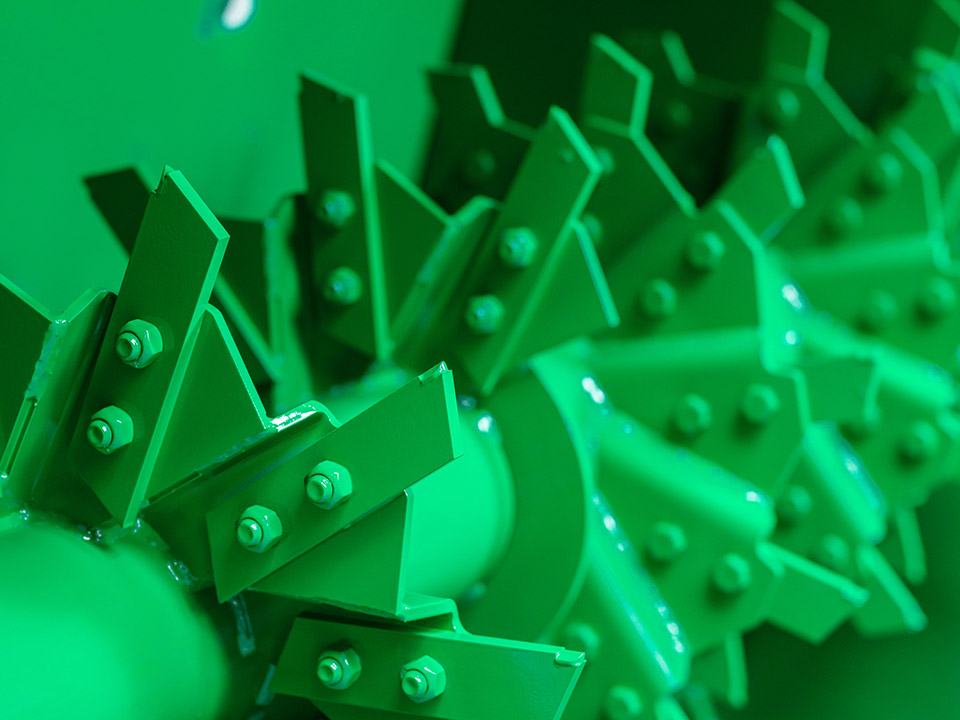

- Two beater rotors with an outer diameter of 550 mm. Spreader aggregate passage 1,300 mm
- 1“ roller chain to drive the lower beater rollers
- 2-disc spreader with a disc diameter 1,000 mm / 4 distribution vanes on each
- Disc gearing with shaft Ø 60 mm / overload protection / freewheel drive mechanism, spreading unit protected by 8 mm thick HARDOX wear plates
- Walterscheid drive shaft PWE 480 with cam clutch and freewheel drive mechanism to protect the powertrain and beater rollers
- Overload clutch to protect the disc spreading aggregate
- Freewheeling between the spreader plate transmissions
- If equipped with electrical control system: Speed monitoring of the beater rotors. The bottom chain is stopped when beater rotor speed is < 140 rpm.
| Article no. | Article |
|---|---|
| E20013 | Hitch drawbar with ball coupling system D80 |
| E20010 | Drawbar with spring suspension, swivel ring Ø 50 mm |
| E20011 | Drawbar with ball coupling system D80 |
| E20310 | BPW axles with trailing self-steering axle |
| E21016 | Tire 700 / 50 - 26.5 BKT 648 |
| E21014 | Tire 650 / 50 R 22.5 Alliance 380 |
| E21015 | Tire 650 / 50 R 22.5 Nokian Country King |
| E21017 | Tire 650 / 55 R 26.5 Alliance 380 |
| E21018 | Tire 710 / 50 R 26.5 Nokian Country King |
| E21019 | Tire 710 / 50 R 26.5 Michelin CargoXBib HF |
| E21020 | Tire 750 / 45 R 26.5 Alliance 380 |
| Article no. | Article |
|---|---|
| E22025 | Endless floor with 4 die-forged flat link chain type 100 |
| E22031 | Spreading cover, hydraulic, on left side |
| E22035 | Spreading cover, hydraulic, on right side |
| E22060 | Duplex chain to drove the lower beater rollers |
| E22070 | LED work lights, per unit |
| E22040 | Protective bar for side walls |
| E22050 | Protection plate for rear hood |
| E24200 | Lighting package: Position lights red / white, side lights yellow, beacon light yellow |
| E24250 | Double lighting / in LED on the spreader aggregate |
| Article no. | Article |
|---|---|
| E99902 | Walterscheid drive shaft PWE 580 with cam clutch |
| E24010 | Electrical operation of endless floor with safety shutdown |
| E24020 | Electrical operation of endless floor, slurry gate and rear hood with safety shutdown |
| E24040 | Additional function for 24020: Electrical operation for spreading cover |
| E24100 | Operating hour counter for electrical operation |
| E24110 | Load counter |
| E24300 | On-board hydraulics for endless floor, slurry gate and rear hood with electrical operation, with a drive shaft |
| E24400 | Automatic lubrication of the roller chain on the spreading aggregate |
| E24410 | Central nipple lubrication system for endless floor and spreading aggregate (17 / 18 lubrication points) |
| E24500 | Electrical central lubrication for all lubrication points on the chassis and body, without rotating joints, automat. lubrication of the roller chain on the spreading aggregate |
